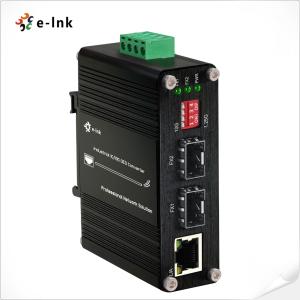

Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function
Overview
The ETH-IMC2402-OEO Series represents a high-performance industrial-grade 10G
Optical-Electrical-Optical (OEO) converter designed for mission-critical network infrastructure.
These ruggedized devices serve dual functions as both fiber media converters and long-haul
fiber repeaters, supporting 10Gbps transmission across extreme temperature conditions
(-40°C to +80°C).
Engineered for backbone network applications including SAN, LAN, and MAN environments,
the series delivers versatile protocol support for SDH/SONET STM-64/OC-192, 10G Fiber
Channel, and 10G Ethernet. Its advanced capabilities include optical wavelength conversion
(1310nm/1550nm/CWDM/DWDM) with Loop-back functionality, making it ideal for demanding
installations in R&D laboratories, data centers, and telecommunication facilities.
The converter's flexible architecture also enables 1Gbps fiber-to-copper media conversion with
transmission distances up to 120km, providing comprehensive connectivity solutions. Whether
deployed as a protocol-independent fiber repeater or media converter, the ETH-IMC2402-OEO
Series ensures reliable performance in harsh industrial environments where standard
equipment would fail.
Key Features Highlighted:
1. Dual functionality as both media converter and long-haul repeater
2. Industrial-grade reliability for extreme environments
3. Comprehensive 10G protocol support
4. Advanced wavelength conversion capabilities
5. Extended 120km transmission range
6. Mission-critical application focus
7. Clear differentiation from commercial-grade solutions
Features
► DIP Switch supports 1.25G/10G fiber data rate switching
► Can be as 1G Ethernet Media Converter if using Ethernet
► IP40 Aluminum Case
► Supports DIN-Rail/Wall-Mount installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
► Support hot plugging, full state led display, easy installation
► Support ITUT prescribed DWDM/CWDM wavelength, and can also display it’s DDM function
► Support Loop-back and Jumbo Frame
► Transparent Transport and very low delay
► 3R function (Regeneration, Reshaping, Re-timing)
Application
Application I: 1G/10G OEO Converter (3R Repeater)
Application II: fiber to copper 1Gbps Ethernet equipment function as fiber-to-copper media
converter
Technical Indexes
| Performance Data | Technical Indexes | |||
| Equipment function | 3R Repeater | |||
| Transmission Speed | 10G: 8.5Gb/s-11.7Gb/s | |||
| Protocols | 8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS | |||
| Interface Type | SFP+ to SFP+ | |||
| Transmission Distance | SFP+ module: up to 80km | |||
| Maximum Packet Forwarding Rate | 14,880,950/S | |||
| Operating Temperature | -40°C to 80°C (-40°F to 176°F) | |||
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) | |||
| Relative Humidity | 5% to 95% non-condensing | |||
| MTBF | > 200,000 hrs | |||
| Ethernet Media Converter Specifications | ||||
| Standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z, 1000BASE-SX/LX IEEE 802.3x Full-duplex flow control | |||
| Work Mode | 10/100/1000BASE-T to 1000BASE-SX/LX | |||
| Port Type | SFP to RJ45 | |||
| Network Cables | Twisted-pair Fiber-optic Cable | |||
| Electrical and Mechanical | ||||
| Input Power | 12~48VDC, Redundant Power (6-pin Terminal Block) | |||
| Power Consumption | 8W Max | |||
| Protection | ||||
| Power Input Overload | Automatic Resettable | |||
| Reverse Polarity | Present | |||
| DIP Switch | ||||
| 4-digit DIP switch function | DIP | Function | Settings | |
| SW 1 | 1.25G/10G | ON - 1.25~8.5G | OFF - 10.3G or 14.025G | |
| SW 2 | Reserved | ON - Reserved | OFF - Reserved | |
| SW 3 | Reserved | ON - Reserved | OFF - Reserved | |
| SW 4 | Reserved | ON - Reserved | OFF - Reserved | |
| LED Indicators: | ||||
| PWR | Power Status | |||
| FX1 | SFP Port-1 | |||
| FX2 | SFP Port-2 | |||
| L/A | TP LINK/ACT | |||
| Dimensions (WxDxH) | 95 x 70 x 30 mm | |||
| Weight | 0.25Kg | |||
| Casing | Aluminum Case | |||
| Mounting Options: | DIN-Rail mount | |||
| Regulatory Approvals | ||||
| ISO9001, CE, RoHS, FCC | ||||
| EN55022:2010+AC: 2011, Class A | ||||
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | ||||
| EN 61000-3-3: 2013 | ||||
| EN55024:2010 | ||||
| IEC 61000-4-2: 2008 (ESD) | ||||
| IEC 61000-4-3: 2010 (RS) | ||||
| IEC 61000-4-4: 2012 (EFT) | ||||
| IEC 61000-4-5: 2014 (Surge) | ||||
| IEC 61000-4-6: 2013 (CS) | ||||
| IEC 61000-4-8: 2009 (PFMF) | ||||
Ordering Information
| Model | Description |
| ETH-IMC2402-OEO | Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
