| Interface | |
| Connector: | 6 x RJ45 |
| Optical Port: | 3 x 100Base-FX (SFP, SC, FC, ST Optional) |
| Electrical and Mechanical | |
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 180W Max. (PoE in use) |
| 5W Max. (PoE not in use) | |
| Standard: | IEEE802.3af/at |
| PoE: | |
| Port: | RJ45 Port 1 ~ Port 6 |
| Max. Power per Port: | 30W Max per port (Alternative B Mode) |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Hardware: | |
| Weight: | 0.6Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail |
| Model | Description |

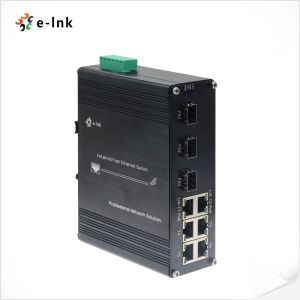

| LNK-IMC306P | Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM |
| LNK-IMC306P-20 | Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-IMC306PS-20 | Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-IMC306PF-20 | Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM |
| LNK-IMC306P-SFP | Industrial 6-port 10/100BASE-T (6-port PoE+) + 3-port 100BASE SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed. |
| Power Options | ► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
